Sealing Machine

A Carton Sealing Machine (also known as a Carton Taping Machine) is a packaging machine used to automatically seal the top and/or bottom flaps of corrugated boxes using adhesive BOPP tape. It’s widely used in warehouses, logistics, e-commerce, FMCG, and manufacturing units.

What It Does:

• The machine automatically:
• Aligns the carton
• Applies pressure-sensitive tape
• Seals the top, bottom, or both ends of the carton

Key Features:

• Tape Compatibility: BOPP tape (commonly 48mm–72mm width)
• Carton Size Range: Adjustable manually or automatically
• Speed: 15–30 cartons per minute (depending on model)
• Construction: Usually stainless steel or powder-coated steel
• Easy integration: With conveyor lines or packaging setups

Advantages:

• Reduces labor costs
• Improves sealing speed and consistency
• Reduces tape wastage
• Minimizes packaging errors and damage

Applications:

• E-commerce fulfillment centers
• Food and beverage packaging
• Pharmaceutical boxes
• Electronics and hardware packing
• Any end-of-line packaging setup

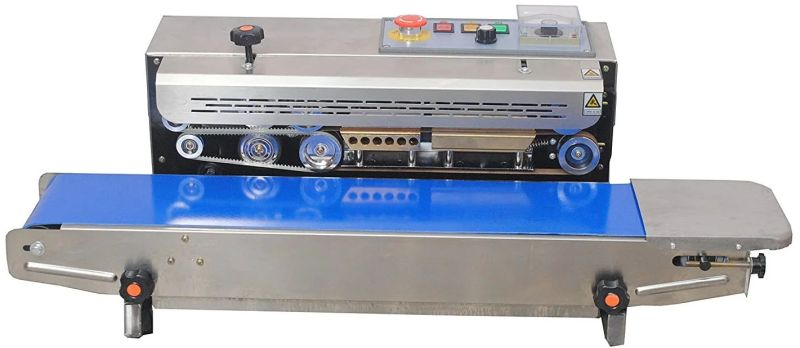

A Horizontal Band Sealing Machine is a continuous sealing device used for sealing pre-filled plastic or laminated pouches in a horizontal position. It’s commonly used for powders, granules, small hardware, snacks, seeds, and dry goods where the contents must remain stable during sealing.

What It Is:

A band sealer uses heat and pressure via a pair of moving belts to seal the mouth of pouches as they pass through the machine horizontally on a conveyor.

Specifications (Typical):

• Voltage: 220V / 50Hz (single-phase)
• Power: 500–750W
• Sealing width: 6–12 mm
• Max pouch weight: 1–5 kg (depending on model)
• Temperature range: 0–300°C

Advantages:

• Continuous high-speed sealing (20–40+ packs per minute)
• Consistent, leak-proof seal
• Compact and easy to operate
• Minimal maintenance
• Suitable for integration into production lines

Ideal For Sealing:

• Chips, dry fruits, spices, namkeen
• Seeds, fertilizers, agro products
• Hardware kits, electronic parts
• Powdered chemicals or cosmetics
• Coffee, tea, bakery products

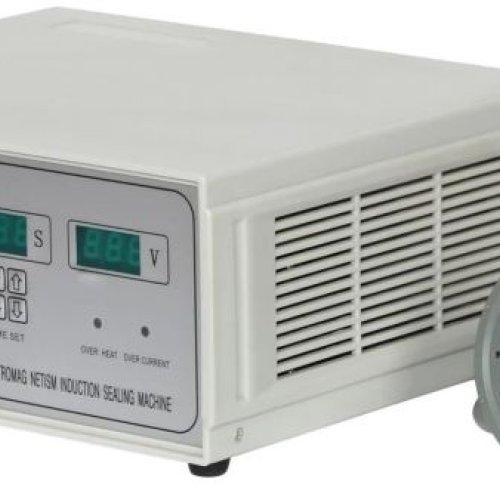

A Manual Induction Sealing Machine is a compact, hand-operated device used to seal the aluminum foil liner of caps onto plastic or glass bottles using electromagnetic induction heat. It’s ideal for small-scale production, laboratories, pharmacies, or startups that need tamper-evident, leak-proof sealing.

What It Is:

This machine uses electromagnetic induction to heat the foil liner in the cap, melting the layer that bonds the foil to the container mouth—creating an airtight and secure seal.

Advantages:

• Low-cost and portable
• Easy to use — no air or water cooling required
• Tamper-evident, leak-proof seal
• Suitable for sealing liquids, powders, or semi-solids
• No consumables beyond foil liners

Applications:

• Pharmaceuticals (syrups, tablets)
• Food & beverages (juice, milk, sauces)
• Cosmetics (shampoos, creams)
• Agrochemicals and oils
• Chemical bottles or sample containers

Important Notes:

• Bottles must have an induction-compatible cap with foil liner (with a heat-seal layer).
• Machine is not suitable for metal caps or non-foil liners.

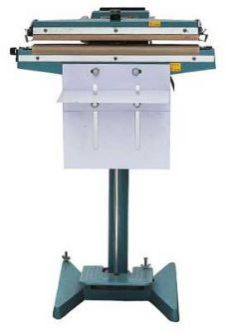

The PSF series foot stamping sealing machine possesses all functions of other simple foot stamping sealing machines. It can seal polythene, poly propylene and multi-layer compound plastics. Height adjustable shelf for bag makes sealing easier. Up and down sealing earns high efficiency. Strong aluminum body. Heating time is adjustable.
