13,000.00 - 16,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Certification | ISI Certified |
| Color | Grey |
| Click to view more | |
Product Details
Finishing
Polished
Frequency
50/60 Hz
Automatic Grade
Semi Automatic
Packaging Type
Carton Box
Driven Type
Electric
Phase
Single Phase
Warranty
1 Year
Country of Origin
India
Application
Industrial Use
Supply Voltage
230v Ac 50hz
Power
750 Watt
Working Speed
0 to 15 Seal/ Min
Sealing Width
6 to 12 Mm
Temp Range
0 to 300 Degree
Max Conveyor Loading
Max 3kg
Machine Weight
25kg
Machine Size (l*b*h)
1060x470x380mm
Brand
S P Engineering

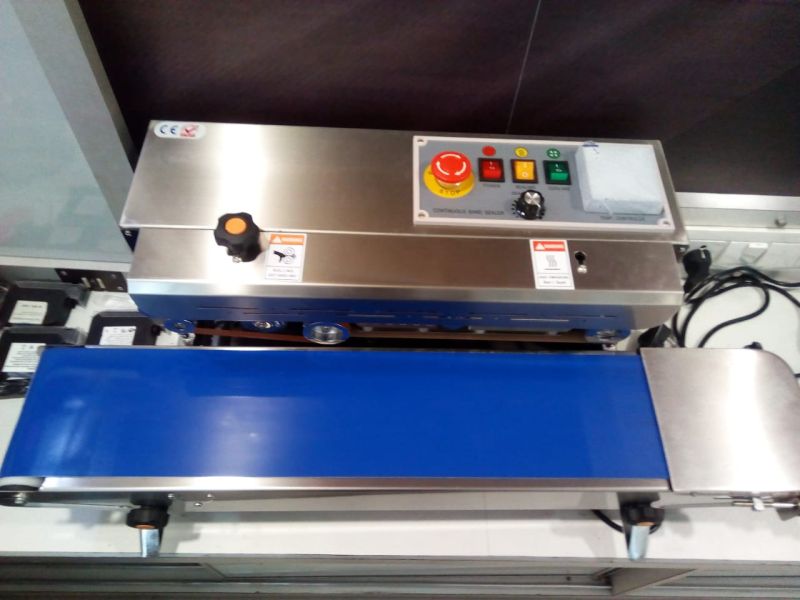

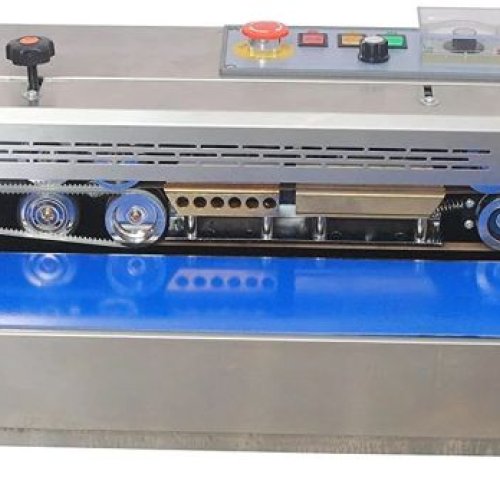

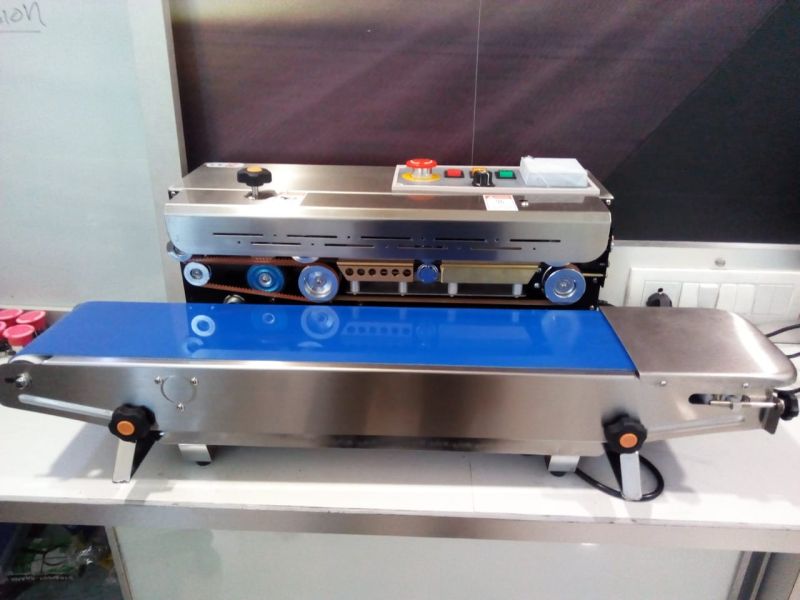

A Horizontal Band Sealing Machine is a continuous sealing device used for sealing pre-filled plastic or laminated pouches in a horizontal position. It’s commonly used for powders, granules, small hardware, snacks, seeds, and dry goods where the contents must remain stable during sealing.
What It Is:
A band sealer uses heat and pressure via a pair of moving belts to seal the mouth of pouches as they pass through the machine horizontally on a conveyor.
Specifications (Typical):
- Voltage: 220V / 50Hz (single-phase)
- Power: 500–750W
- Sealing width: 6–12 mm
- Max pouch weight: 1–5 kg (depending on model)
- Temperature range: 0–300°C
Advantages:
- Continuous high-speed sealing (20–40+ packs per minute)
- Consistent, leak-proof seal
- Compact and easy to operate
- Minimal maintenance
- Suitable for integration into production lines
Ideal For Sealing:
- Chips, dry fruits, spices, namkeen
- Seeds, fertilizers, agro products
- Hardware kits, electronic parts
- Powdered chemicals or cosmetics
- Coffee, tea, bakery products
Key Features
| Feature | Description |
| Horizontal Operation | Pouches lie flat; ideal for dry or solid products. |
| Adjustable Temperature | For sealing various films like PE, PP, BOPP, and laminated foils. |
| Speed Control | Adjustable sealing speed (typically 0–12 meters/min). |
| Conveyor Belt | Supports pouches during sealing; often height- and pressure-adjustable. |
| Embossing/Printing | Optional ink or emboss coder for batch/date stamping. |
| Material | MS or SS body; stainless steel preferred for food/chemical use. |
