9,500.00 - 10,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Finishing | Coated |
| Driven Type | Electric |
| Click to view more | |
Product Details
Color
Grey
Automatic Grade
Automatic
Usage
Industrial Use
Packaging Type
Carton Box
Phase
Single Phase
Warranty
1 Year
Country of Origin
India
Supply Voltage
230v Ac 50hz
Power
500 Watt
Working Speed
0 to 30 Seal/ Min
Sealing Width
20 to 100 Mm
Max Conveyor Loading
Max 3kg
Machine Weight
6kg
Machine Size (l*b*h)
340x290x150mm

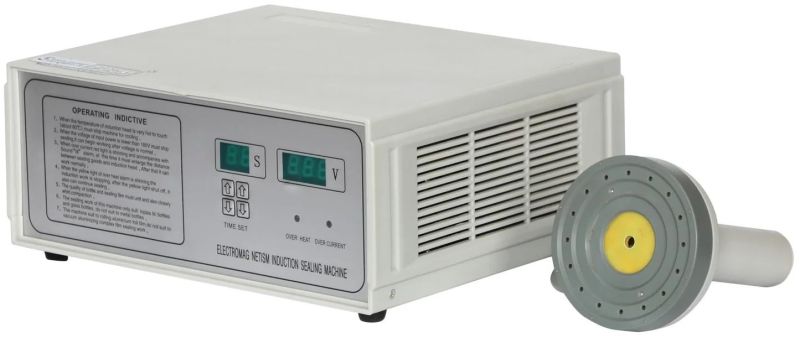

A Manual Induction Sealing Machine is a compact, hand-operated device used to seal the aluminum foil liner of caps onto plastic or glass bottles using electromagnetic induction heat. It’s ideal for small-scale production, laboratories, pharmacies, or startups that need tamper-evident, leak-proof sealing.
What It Is:
This machine uses electromagnetic induction to heat the foil liner in the cap, melting the layer that bonds the foil to the container mouth—creating an airtight and secure seal.
Advantages:
- Low-cost and portable
- Easy to use — no air or water cooling required
- Tamper-evident, leak-proof seal
- Suitable for sealing liquids, powders, or semi-solids
- No consumables beyond foil liners
Applications:
- Pharmaceuticals (syrups, tablets)
- Food & beverages (juice, milk, sauces)
- Cosmetics (shampoos, creams)
- Agrochemicals and oils
- Chemical bottles or sample containers
Important Notes:
- Bottles must have an induction-compatible cap with foil liner (with a heat-seal layer).
- Machine is not suitable for metal caps or non-foil liners.
Key Features
| Feature | Description |
| Manual Operation | Hand-held sealing head; operator places it over the cap. |
| Cap Size Range | Usually 20mm–100mm (varies by model). |
| Material Compatibility | Works with PET, PE, HDPE, LDPE, glass bottles (with foil liners). |
| Digital Timer/Power | Adjustable sealing time and power settings. |
| Sealing Time | Typically 1–3 seconds per bottle. |
| Power Requirement | 220V / 50Hz, single-phase (approx. 500–800W). |
