9,500.00 - 10,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Importer |
| Power | 500 Watt |
| Country of Origin | India |
| Warranty | 1 Year |
| Click to view more | |
Product Details
Phase
Single Phase
Packaging Type
Cap Induction Sealing
Usage
Industrial Use,Pharmaceutical Industry
Automatic Grade
Manual
Color
White
Driven Type
Electric
Finishing
Coated
Material
Plastic
Supply Voltage
230v Ac 50hz
Working Speed
0 to 30 Seal/ Min
Sealing Width
20 to 100 Mm
Max Conveyor Loading
Max 3kg
Machine Weight
6kg
Machine Size (l*b*h)
340x290x150mm

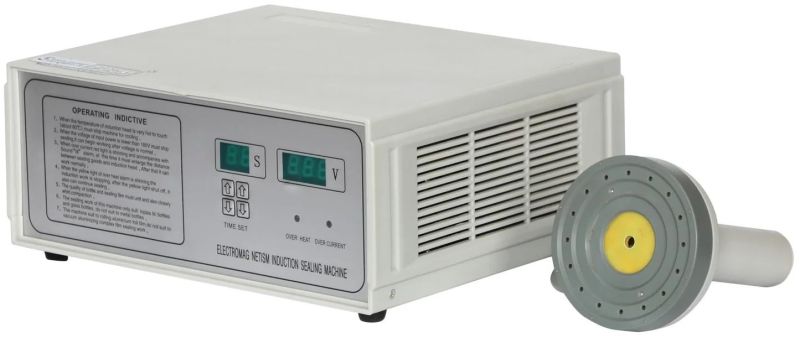

A Manual Induction Sealing Machine is a compact, hand-operated device used to seal the aluminum foil liner of caps onto plastic or glass bottles using electromagnetic induction heat. It’s ideal for small-scale production, laboratories, pharmacies, or startups that need tamper-evident, leak-proof sealing.
What It Is:
This machine uses electromagnetic induction to heat the foil liner in the cap, melting the layer that bonds the foil to the container mouth—creating an airtight and secure seal.
Advantages:
- Low-cost and portable
- Easy to use — no air or water cooling required
- Tamper-evident, leak-proof seal
- Suitable for sealing liquids, powders, or semi-solids
- No consumables beyond foil liners
Applications:
- Pharmaceuticals (syrups, tablets)
- Food & beverages (juice, milk, sauces)
- Cosmetics (shampoos, creams)
- Agrochemicals and oils
- Chemical bottles or sample containers
Important Notes:
- Bottles must have an induction-compatible cap with foil liner (with a heat-seal layer).
- Machine is not suitable for metal caps or non-foil liners.
Key Features
| Feature | Description |
| Manual Operation | Hand-held sealing head; operator places it over the cap. |
| Cap Size Range | Usually 20mm–100mm (varies by model). |
| Material Compatibility | Works with PET, PE, HDPE, LDPE, glass bottles (with foil liners). |
| Digital Timer/Power | Adjustable sealing time and power settings. |
| Sealing Time | Typically 1–3 seconds per bottle. |
| Power Requirement | 220V / 50Hz, single-phase (approx. 500–800W). |
